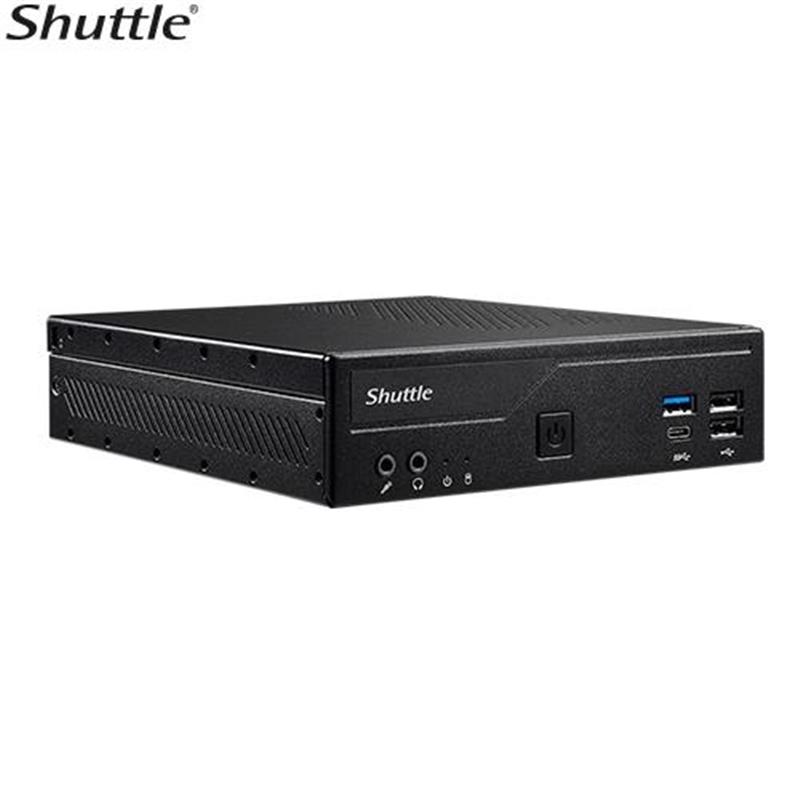

Beschrijving Shuttle DH610S PCs/werkstation Slim PC DDR4-SDRAM HDD+SSD Mini PC Zwart
1-liter Entry-level PC Packed in Enhanced 12th Gen Features
Shuttle XPC Slim DH610S supports Intel 12th Gen LGA1700 Alder Lake processors and integrated UHD graphics 700 series. With a built-in HDMI 2.0 and a DisplayPort, users can easily configure two 4K displays. Multiple I/O ports are included, the model provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, an Intel 1GbE LAN, and two M.2 expansion slots to deliver exceptional productivity and a reliable operation. It is affordable and a perfect option for simple digital signage, office, and thin-client use.
Intel 12th Gen processor
Based on the H610 chipset, DH610S is designed for 12th Gen Intel processors and supports up to 64GB (32GBx2) of DDR4-3200 memory, providing powerful computing capacity. Intel UHD Graphics 700 series is integrated to deliver outstanding performance.
Multiple Displays Productivity
DH610S supports two independent displays via a built-in HDMI 2.0b and a DisplayPort output. Moreover, an optional accessory PVG01 can be chosen to offer an optional VGA port, providing productivity benefits for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610S offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Excellent and Flexible Connectivity
DH610S features flexible connectivity options for four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and an Intel 1GbE Lan that support Wake on LAN functions.
Exclusive Cooling Technology
DH610S features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
Operating System Support
- Windows 11 64bit
- Windows 10 64bit
- Linux
